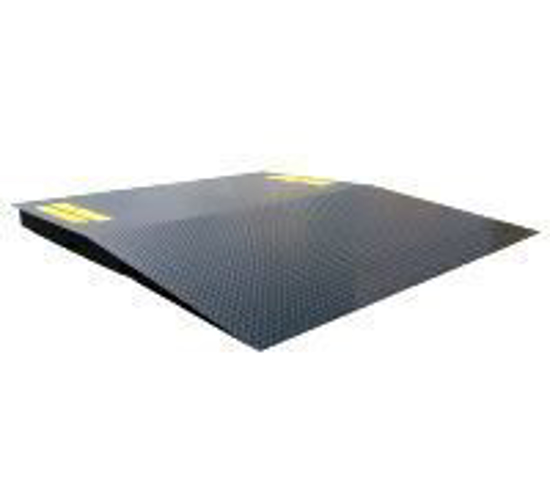

Picture of Refrigerated Access Ramp 2400mm Length
Picture of Refrigerated Access Ramp 2400mm Length
Picture of Refrigerated Access Ramp 2400mm Length

Refrigerated Access Ramp 2400mm Length

The Refrigerated access ramp is designed primarily for bridging into a standard container from ground level for loading and unloading a shipping container utilising a forklift. The Refrigerated Container Ramps can also be used for vehicle loading from a raised dock.

CRR2400 Refrigerated access ramp is a fully welded steel access ramp purposely built for Refrigerated Containers only. This Refrigerated access ramp has an overall height of 210mm which is 50-60mm higher than a standard ramp to suit the high entry point of a reefer container. The Refrigerated Container Ramp has side entry pockets with 6mm anti-slip cheque plate.
Part No: CR5-2400-R (AR)
*
Call for pricing

The Refrigerated access ramp is designed primarily for bridging into a standard container from ground level for loading and unloading a shipping container utilising a forklift. The Refrigerated access ramp can also be used for vehicle loading from a raised dock.

HE-CR5-2400-R Refrigerated access ramp is a fully welded steel container ramp purposely built for Refrigerated Containers only. This Refrigerated access ramp has an overall height of 210mm which is 50-60mm higher than a standard ramp to suit the high entry point of a reefer container. The Refrigerated access ramp has side entry pockets with 6mm anti-slip cheque plate.

  • Length 2400mm (Slope section 1200mm, Flat section1200mm)
  • Width 2200mm
  • Heights 210mm
  • 6mm Anti-slip Chequer plate
  • Painted finish (PA10)
  • SWL 5000kgs
  • Side entry fork pockets
  • Unit Weight: 430kg
  • Securing chains
