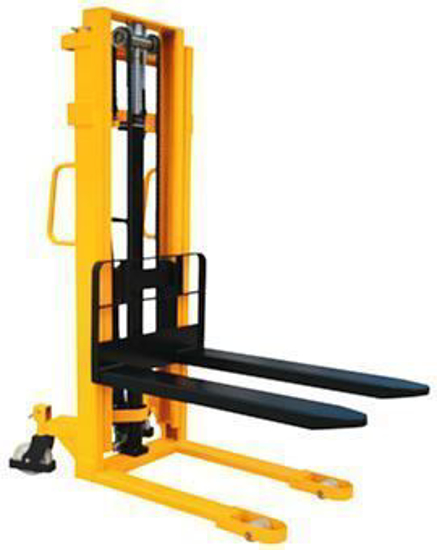

Picture of Manual Pallet Stacker 1000kg 2400mm Lifting Height

Manual Pallet Stacker 1000kg 2400mm Lifting Height

The 1000kg 2400mm manual pallet stacker is ideally suited for applications where loads are lighter and distances are short.
Part No: PALSTK-2400
*
Call for pricing

The 1000kg 2400mmmanual pallet stacker is ideally suited for applications where loads are lighter and distances are short.

Specification
Capacity750 - 1000 Kg
Overall Width700 / 980 mm
Ground Clearance (mm)30
Turning Radius (mm)1200
Front Tyre Size (mm)180 x 70
WheelsNylon Orange Wheels
Lowered Height (mm)90
Falling Speed with/without Loads143 / 53 mm
Overall Length (mm)1280
Load Centre Distance (mm)500
Fork Size (mm)550 x 1150
Net Weight (Kg)200 - 316
Rear Tyre Size (mm)180 x 50
Lifting Height (mm)2400
Lifting Speed with / without Loads20 / 22 mm
