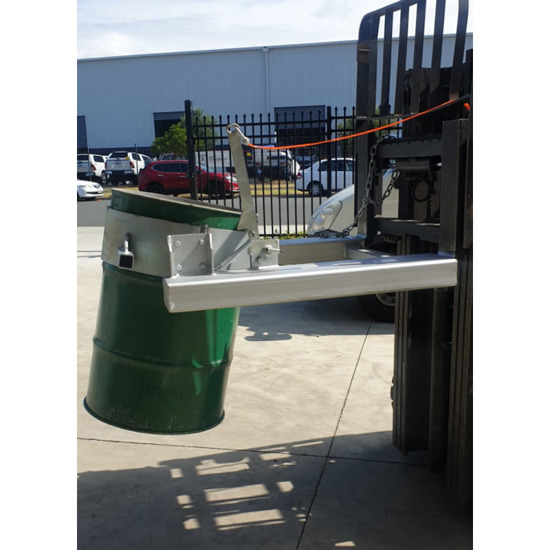

Drum Dumper 500 Kg SWL

This forklift drum dumper is designed for fast and economical 205 litre drum emptying. A belly strap with an eccentric lock holds the drum firmly in position. To release the drum, the operator pulls the draw chord from the drivers seat. With the C of G forward of the pivot, the drum tips forward 180 degrees plus automatically. This attachment is ideal for scrap and waste products. The standards finish of this unit is enamel painted.
Part No: FDH-18-504
*
1,655.000 (NZD) excl GST

This forklift drum dumper is designed for fast and economical 205 litre drum emptying. A belly strap with an eccentric lock holds the drum firmly in position. To release the drum, the operator pulls the draw chord from the drivers seat. With the C of G forward of the pivot, the drum tips forward 180 degrees plus automatically. This attachment is ideal for scrap and waste products. The standards finish of this unit is enamel painted.

Specifications:

  • Working Load Limit (WLL) 500kg
  • Pocket size 185 x 60mm
  • Pocket centres 840mm
  • Load Centre 950mm
  • Unit Weight 85kg
  • 180 degree plus rotation
  • Horizontal C of G 685mm
  • Manufactured strictly in accordance with AS 2359.1
SWL (kg)Fork Pocket Size (mm)Load Centre (mm)Unit Weight (kg)
500180 x 651590115
