Bulk Bag Lifter

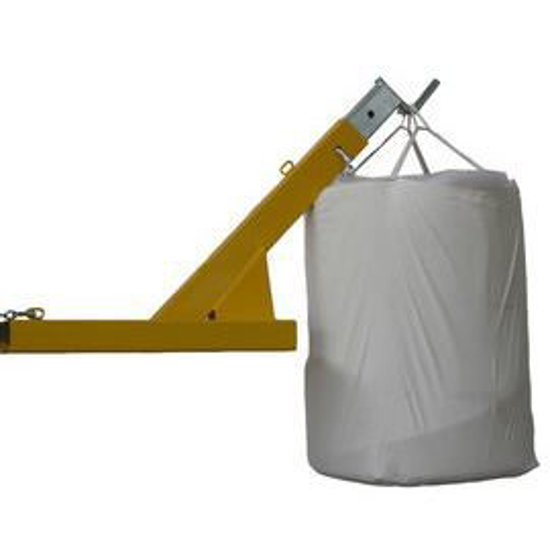

This forklift attachment makes lifting 1000kg bags very easy as the operator does not have to leave his Forklift to load & unload. It also enables extra lift height to get over hoppers or sides of trailers. A large hook easily visible to the driver makes it easy to guide the hook through the loops on the bag. The big bag lifter comes complete with a chain to secure the jib to the forklift and a pin to lock the boom into 1 of 5 different height extensions.
Part No: BBL1.0
*
1,495.000 (NZD) excl GST

This forklift attachment makes lifting 1000kg bags very easy as the operator does not have to leave his Forklift to load & unload. It also enables extra lift height to get over hoppers or sides of trailers. A large hook easily visible to the driver makes it easy to guide the hook through the loops on the bag. The big bag lifter comes complete with a chain to secure the jib to the forklift and a pin to lock the boom into 1 of 5 different height extensions.

Specification
Safe Working Load (Kg)1000
Fork Pocket Size (mm)165 x 65
Pocket Centres (mm)250
Unit Weight (Kg)55
Surface TreatmentPainted Finish
Installation MethodSlip-on & Chain to Carriage



Part NoPosition 1Position 2Position 3Position 4Position 5
BBL1.01320mm1450mm1585mm1720mm1850mm
Height (mm)70084097511101245
SWL (Kg)1000910830760710
